BOPP Label Film - High-Performance Pressure-Sensitive Label Substrate for Printing and Converting
Product Attributes
| Attribute |
Value |
| Product name |
BOPP Label Film - High-Performance Pressure-Sensitive Label Substrate for Printing and Converting |
| Material |
BOPP |
| Processing Type |
Extrusion |
| Strech Type |
Bi-axially Oriented |
| Thickness |
50μm / 60μm / 75μm (±2%) |
| Width |
Customized |
| Length |
Customized |
| Package |
simple/vertical/suspend/horizontal |
| Corona Treatment |
Both sides |
| Color |
Clear |
| Density |
0.91 |
| Gloss |
≥90 |
| Haze |
≤2.0% |
BOPP Label Film - High-Performance Pressure-Sensitive Label Substrate for Printing and Converting
Our BOPP Label Film is engineered for high-speed pressure-sensitive label production, offering exceptional printability, dimensional stability, and converting performance. This biaxially oriented polypropylene film features consistent thickness, superior surface energy, and excellent ink adhesion, making it ideal for flexographic, UV, and digital printing applications.
BOPP Label Film - High-Performance Pressure-Sensitive Label Substrate for Printing and Converting key features
- Premium Print Surface – 38-42 dynes/cm surface energy - for superior ink adhesion (water-based, UV, solvent)
- Dimensional Stability – <0.3% shrinkage @ 150°C for precise die-cutting and registration
- High Clarity & Gloss – ≤1.2% haze / ≥95% gloss - for vibrant label appearance
- Smooth & Uniform Surface – Ra ≤0.1μm roughness – for sharp print reproduction
- Convertible at High Speed - Optimized for 600+ m/min coating and slitting
Applications
- High-Barrier Flexible Packaging – Snacks, coffee, pet food
- Decorative Metallized Films - Gift wraps, holographic labels
- Insulation Materials | Capacitor Films | EMI Shielding
Label Manufacturing Benefits
- Reduces Ink Consumption – Excellent ink holdout minimizes dot gain
- Eliminates Static Issues – Anti-static versions available for dust-free converting
- Compatible with All Adhesives – Acrylic, rubber-based, and hot-melt systems
- Regulatory Compliance – Meets FDA 21 CFR 175.105 for indirect food contact
Why Label Converters Choose This Film?
- Proven on 20+ Coating Lines – Optimized for silicone release application
- Consistent Quality – Batch-to-batch variation <2%
- Sustainable Option – 25-50% PCR content available
- Technical Support – Free rheology testing for your adhesive systems
Technical Specifications
| Property |
Value |
| Material |
BOPP (Biaxially Oriented Polypropylene) |
| Application |
Commercial Printing, Packaging, Promotional Items |
| Thickness Range |
12μm / 15μm / 18μm (±3%) |
| Width |
Customizable (e.g., 500mm - 1500mm) |
| Seal Strength (0.5s) |
5-7 N/15mm both sides |
| Hot Tack Initiation |
110°C |
| Tensile Strength (MD) |
160-180 MPa |
| Tensile Strength (TD) |
240-260 MPa |
| Haze |
≤2% |
Product Pictures
Customer Reviews
"Achieved 98% first-pass yield on our Mark Andy presses – no corona treatment needed."
"The dimensional stability solved our registration issues in high-speed die-cutting."
"Switched from PE to BOPP – better stiffness and print quality for premium labels."
Packing Methods
Company Introduction
Production Line introduction
Production Line Pictures

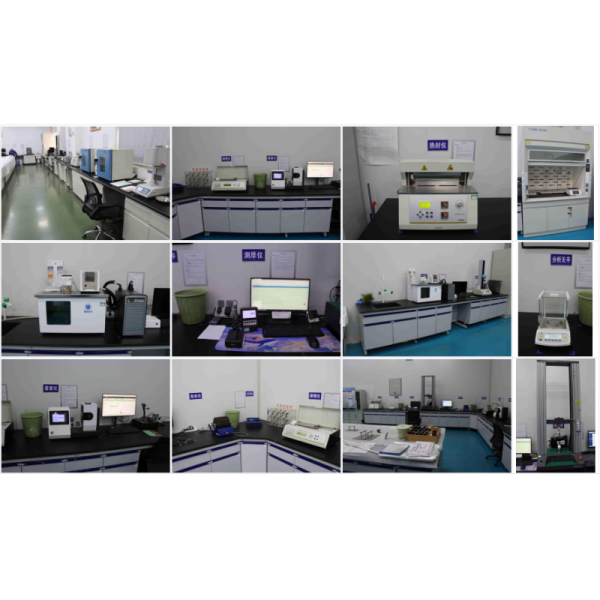

Laboratory
Handling & Storage Instructions
To ensure the longevity and performance of our BOPP film, please adhere to the following guidelines:
- Shelf Life: 6 months from the date of manufacture.
- Storage Conditions: Store in a cool, dry place away from direct sunlight and moisture.
- Temperature Range: 10°C - 30°C.
- Humidity: Keep below 60% relative humidity.
- Handling: Avoid folding or creasing the film to prevent damage.
Order Now!
Standard Rolls - 500-1,500mm widths, 3"/6" cores.
Samples - Free 100-meter samples available for testing.
MOQ - 20GP for bulk orders; discounts for 100TON.
Email Us for technical datasheets and transfer process guidelines!
Request Chopstick Packaging Samples - Include your machine make/model for optimized recommendations
